mt7

SERIES



Our top-of-the-line MT7 Series is available with 101 horsepower and includes an ergonomic and spacious cab. Now featuring a sleek, aggressive exterior design with new Deep Sky-blue paint and silver rims, redesigned hood allows for improved engine performance and serviceability, and LED Lamps. Premium features such as a standard instructor’s seat, Goodyear LSW tires, three front remotes, two rear remotes, and superior lift capacities for both the front-loader and three-point hitch come standard.

dumbbell iconLOADER LIFT CAPACITY 5,139 lbs. tractor iconHITCH LIFT 8,378 lbs.
lightning iconENGINE HP 100.6 HP tractor wheel iconPTO HP 85.5 HP



Brochure LS Model Comparison Get Pre-Approved

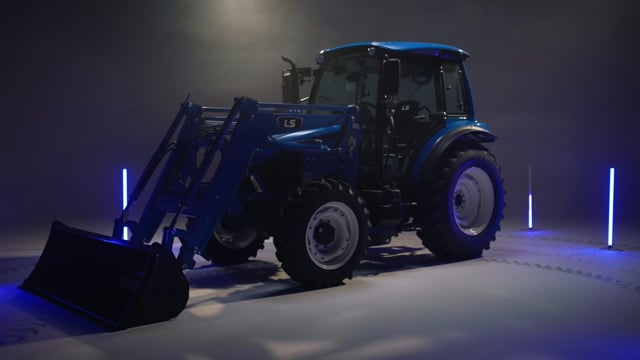

NEW MT7101CSPS – 100.6HP

*Exact model shown in 360° view may vary

Features

  • 24F x 24R Power Shuttle​
  • Standard Air Suspension Seat ​
  • Standard Electric Engaged Independent PTO​
  • Standard Instructor Seat​
  • Standard Interior Power Source​
  • Optional Third Rear Remote​

SPECIFICATIONS

ENGINE

  • Type: 4 Cylinder, CRDI, Water-cooled
  • Model: F5G
  • Engine HP (Gross): 100.6
  • PTO HP: 85.5
  • Rated Speed (RPM): 2,200
  • Displacement (cu. in): 206.7
  • Fuel Tank Capacity (gal): 30.4

DRIVE TRAIN

  • Transmission Type (Option): Power Shuttle
  • No. of Speed: 24 X 24
  • Brakes: Wet, Multi – disc
  • Forward Speed (mph): 1 – 23.1

PTO

  • Type: Power Shuttle
  • Rear, rpm: 540 / 750 / 1,000

HYDRAULIC SYSTEM

  • Control System: Position/Draft
  • Implement pump (gpm): 15.7
  • Steering pump (gpm): 6.5
  • Total flow (gpm): 22.2
  • Category, 3 pt hitch: CAT II
  • Hitch Lift capacity, lbs (Hitch end): 8,378
  • Remote Valves: 3 pairs (Front), 2 pairs (Rear)

DIMENSION

  • Overall length (Frame to Link, in.): 152.2
  • Overall width with tires (in.): 78.7
  • Wheelbase (in.): 90
  • Height to top (in.): 107

TIRE SIZE

  • Front / Rear R14: FW: 340/70R28, RR: 460/75R38
  • Front / Rear Ag: F: 13.6-24, R: 18.4-34

WEIGHT

  • Total weight without ballast (lbs.): 7,985

OPTIONS

  • Front weight with bumper (88lb X 8)
  • Rear weight(99lb X 4)
  • Beacon Lamp
  • Remote Valve- 1Pair (2 Outlets) Volume adjustable sectional Valve

ATTACHMENTS

FRONT LOADER – LL8100

  • Bucket Size (in): 83
  • Maximum Lift height (in): 139.9
  • Clearance with Attachment Dump (in): 103.3
  • Reach at Maximum Height (in): 23.4
  • Maximum Dump Angle (deg.) 57
  • Maximum Rollback Angle (deg.): 46
  • Digging Depth (in): 4.6
  • Overall Height in Carry Position (in): 68.8
  • Lift Capacity(@ Pivot pin) (lbs.) 5,139
  • Breakout Force(@ Pivot pin) (lbs.): 5,313
  • Approx. Weight(Loader w/o Bucket)(lbs.): 1,660
See Attachment
