MT4 - New SERIES
The new 73 HP addition to the MT4 Series, the MT473 provides the extra power you need to meet any size job you have, and is available with either a synchro shuttle or power shuttle transmission.
The MT473 features increased productivity with its enhanced front loader, increased operator comfort with new seats and more efficient operating space.
Even with the increased power, maintenance is simple with no DEF required and a well thought out layout that makes routine maintenance tasks a breeze.
 LOADER LIFT CAPACITY 3,488 lbs. |
 HITCH LIFT 3,483 lbs. |
 ENGINE HP 73 HP |
 PTO HP 62.9 HP |
New MT473 – 73HP
- MT4 redesigned with new LS Family Look. New hood design allows for improved engine performance and serviceability
- LED Lamps for all models provide better illumination for more efficient work in darker operating conditions
- Larger tire size options which provide better grip and traction with lower ground pressure.
- 15% more space in new cab design than previous model allows for more comfort and convenience in the same footprint. Additionally, the redesigned cab offer improved access to key components for easier diagnosis and routine maintenance
- Improved high back for seat with wider and improved cushion for greater operator comfort
- Enhanced lift height (up to 132.9” in max height mode) and capacity (3,487 lb in max power mode) for front loader (LL5001) with standard self leveling bucket
- Standard 2 sets of remote valves. Adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.
- Extendable lower links. Category 2 with hitch lift capacity of 4,079 lbs. allows easier attachment of a wide variety of implements.
- Standard 3rd function button on joystick
ENGINE
- Type: Vertical Water-Cooled 4Cycle Diesel Engine
- Model (Tier 4): L4C25-T
- Engine HP (Gross): 73
- PTO HP: 62.9
- Rated Speed (RPM): 2,500
- Displacement (cu. in): 152.85
- Fuel Tank Capacity (gal): 24.3
DRIVE TRAIN
- Transmission Type: Synchro Shuttle
- No. of Speed: F16 X R16
- Brakes: Wet, Multi-disc
PTO
- Type: Independent
- Rear, rpm: 540, 540E (Standard)
HYDRAULIC SYSTEM
- Control System: Position / Draft
- Implement pump (gpm): 14.5
- Steering pump (gpm): 6.6
- Total flow (gpm): 21.1
- Category, 3 pt hitch: CAT II
- Hitch Lift capacity, lbs (Hitch end): 3,483 (24˝ aft. of Hitch)
- Remote Valves: 2 Pairs (Front), 2 pairs (Rear)
- Steering: Hydrostatic Power Steering
DIMENSION
- Overall length (Frame to Link, in.): 135
- Overall width with tires (in.): 72.6
- Wheelbase (in.): 83.1
- Height to top (in.): 113.9
TIRE SIZE
- Standard Ag Front / Rear: 9.5 – 24 / 16.9 – 28
- IND Front / Rear: 10.5/80×18 10PR / 19.5Lx24 8PR
- Large Ag Front / Rear: 11.2-24 / 16.9-30
- R14 Front / Rear: 320-85R20 119D / 420/75R34 142D
WEIGHT
- Total weight without ballast (lbs.): 5,423
STANDARD
- Remote Valve – 2 Pairs
- Loader Valve – 2 Pairs
- Engine Kill Switch
- Seat With Suspension & Armrest
- Telescopic Lower Link
- External Lift Control Lever
- Drawbar
- Linked Pedal
- RH Step
- Tool Box
OPTION
- Tail Pipe ROPS Vertical Kit
- DIA Rear Ballast Kit
- Step Sub RH DIA Kit
- Air Ride Seat Cab DIA Kit
- Seat Assy-Fab-Ls Gray-Trg850
- Cab Room Mirror Cab DIA Kit
- Gear Range TRG285
- 3rd Function Cab Kit
- 3rd Function ROPS Kit
- External Position Lever
- Drawbar Kit General
- Drawbar Kit Clevis
- Remote Control Valve Spring 2S Kit
- Remote Control Valve Spring 3S Kit
- Remote Control Valve Detent 2S Kit
- Remote Control Valve Detent 3S Kit

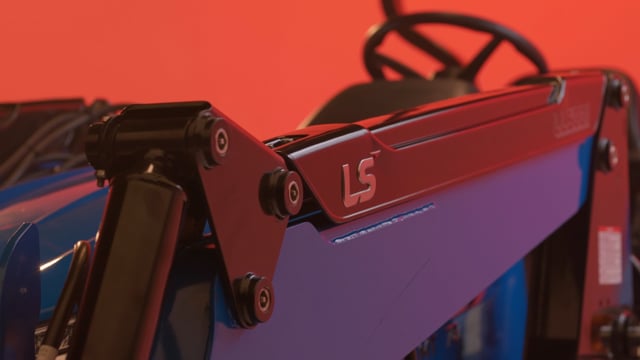

FRONT LOADER – LL5001
- Tractor Application: MT4 Series
- Bucket Size (in): 78
- Maximum Lift height (in): 133
- Maximum Dump Angle (deg.) 59.7
- Digging Depth (in): 6
- Lift Capacity(@ Pivot pin) (lbs.) 3,488
- Breakout Force(@ Pivot pin) (lbs.): 5,472
- Approx. Weight(Loader w/o Bucket)(lbs.): 1,190
